Elfin-Pro Collaborative Robot
- China
- hansrobot_international@hanslaser.com
- 400-852-9898
- Shenzhen Han's Robot Co., Ltd
- hansrobot.net/
Salary / price 25000 $
| About the robot | |
|---|---|
| Robot name | Elfin-Pro Collaborative Robot |
| Employment type | Full-time employees |
| Dimensions | |
| Load capacity | |
| The speed of movement | |
| Power | |
| Energy consumption | |
| Working hours | |
| The warranty period | |
Relocatable robot
*Payment terms, contracts, shipping/logistics, insurance details, etc. are provided upon request.
Share with friends:
Robot for industry
Robots from the manufacturer
Specifications
Elfin-Pro Collaborative Robot.Elfin-PRO collaborative robot is developed on the basis of elfin collaborative robot.It not only has all the advantages of the elfin collaborative robot such as a variety of models, easy deployment, high precision, high flexibility, double-joint module design and modular design, but also has upgraded the product capability through the integration of cutting-edge AI technology, end force control integration, end vision integration.In addition, it adopts a new elegant and practical surface treatment process which is more stable and reliable.With all these advantages, Elfin PRO offers a better human-robot collaboration experience and can support wider application scenarios.
Description

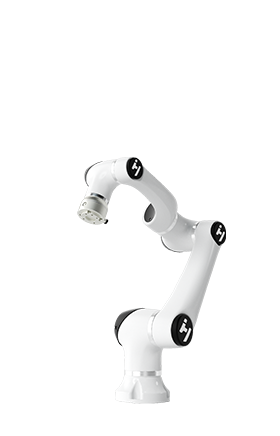

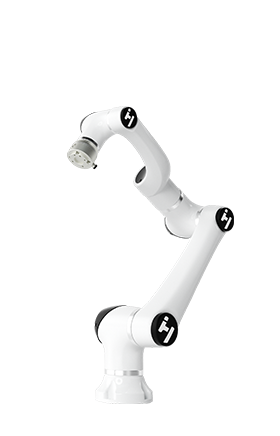

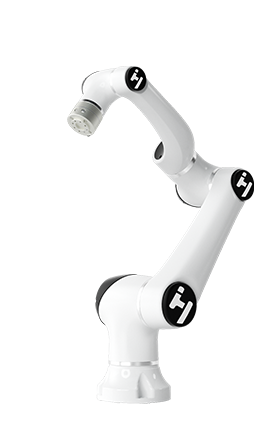

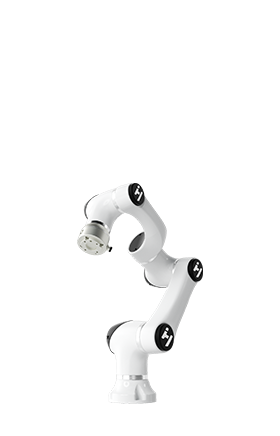

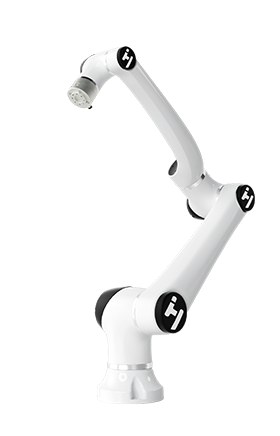

Type E03-Pro E05-Pro E05L-Pro E10-Pro E10L-Pro Weight 18kg 25kg 26kg 43kg 45kg Payload 3kg 5kg 3.5kg 10kg 8kg Reach 590mm 800mm 950mm 1000mm 1300mm Power Consumption 100W Typical Application 180W Typical Application 350W Typical Application Joint Range ±360° Joint Speed J1-J4 180°/s
J5-J6 200°/sJ1-J4 180°/s
J5-J6 200°/sJ1-J4 180°/s
J5-J6 200°/sJ1-J2 120°/s
J3-J4 135°/s
J5-J6 180°/sJ1-J2 100°/s
J3-J4 135°/s
J5-J6 180°/sTool Speed 2m/s 3m/s 3m/s 2m/s 2.5m/s Repeatability ±0.02mm ±0.02mm ±0.02mm ±0.03mm ±0.03mm Degree Of Freedom 6 END I/O Port Digital Input:3, Digital Output:3, Analog Input:2 Control Box I/O Port Digital Input:16, Digital Output:16, Analog Input:2, Analog Output:2 I/O Source 24V 2A Communication TCP/IP and MODBUS Programming Graphical Programming, Remote Call Interface IP Classification IP66 Collaborative Operation 10 Advanced Security Configuration Functions Main Material Aluminum Alloy Working Temperature 0-50℃ Power Input 200-240V AC, 50-60Hz Cable Cable To The Control Cabinet: 5m, Cable To The Teach Pendant: 5m
Force Control Integration:
a.Internal wiring with better anti-interference ability.
b.Constant force control for perfectly trajectory fit.
c.Fast programming.
d.Soft control with smooth free-drive teaching.
e.Force exploration suitable to intelligent assembly which makes the small batches and flexible production of multiple varieties to be possible.
Camera System:
a.Internal wiring enables the robot to have better anti-interference ability and supports fast deployment.
b.With visual positioning, visual classification recognition, the object detection, QR code recognition AI application capabilities.
c.Han's Robot's self-developed hardware and software which
is easy to operate and pretty interactive and scalable.
Internal Wiring:
Han's robot is connected to the force control and AI vision system through internal wiring, which reduces the number and length of external cables, simplifies the wiring process, and avoids problems of tangled wires and signal interference.
Higher Protection, more applications:
With IP66 protection, E PRO robot can be adapted to different production environments which further extending the range of applications.
High Sensitivity, much safer
E PRO robot realizes 1000Hz real-time control refresh frequency, which can achieve the industry-leading trajectory precision control, stable and reliable performance, faster response and safer human-machine collaboration.
Industries:
Electronics, Automotive, Metal processing, Renewable energy, Education.
Applications:
Loading and unloading, Assembly, Picking and placing, Welding, Palletizing Dispensing, Inspecting.
