Salary / price 20000 $
About the robot
Robot name Elfin Collaborative Robot
Employment type Full-time employees
Dimensions
Load capacity
The speed of movement
Power
Energy consumption
Working hours
The warranty period

Relocatable robot

*Payment terms, contracts, shipping/logistics, insurance details, etc. are provided upon request.

Share with friends:

Robot for industry

Aerospace Construction Consumer Educational Robotics Entertainment Industrial Inspection Logistics Medical Service Cobots

Robots from the manufacturer

$ 25000 Transaction Price Open to relocation

$ 25000 Transaction Price Open to relocation

$ 30000 Transaction Price Open to relocation

$ 40000 Transaction Price Open to relocation

Specifications

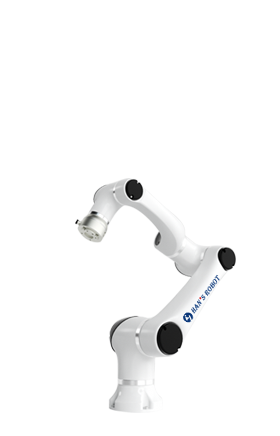

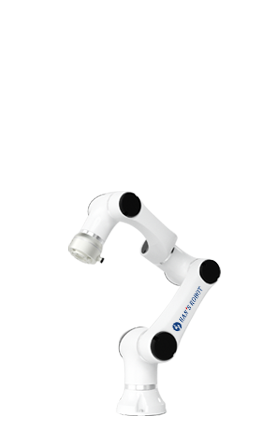

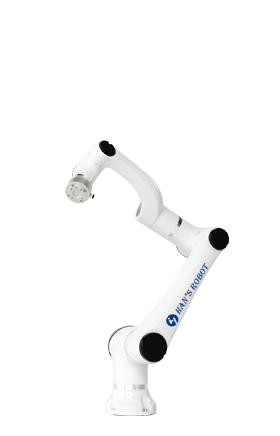

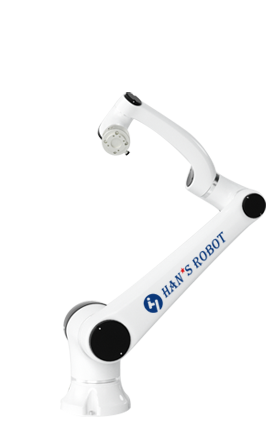

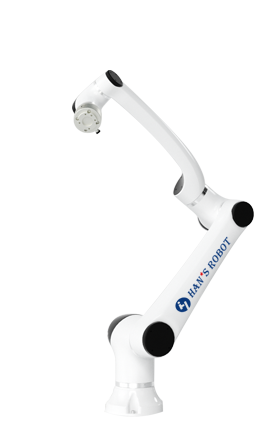

Elfin Collaborative Robot The Elfin 6-axis collaborative robot can be used in automated integrated production lines, assembly, picking, welding, grinding, spraying and other applications, and has been exported to more than 100 countries and regions.It adopts a unique double-joint module design, where one motion module contains two joints to form a unique kinematic structure, which not only differs from most collaborative robots on the market, but also provides more flexibility when working.


Description

ModelE03E05E05-LE10E10-LE15
Weight18kg25kg26kg43kg45kg60kg
Payload3kg5kg3.5kg10kg8kg15kg
Reach590mm800mm950mm1000mm1300mm1300mm
Power Consumption100W Typical Application180W Typical Application180W Typical Application350W Typical Application350W Typical Application600W Typical Application
Joint Range±360°
Joint SpeedJ1-J4 180°/s
J5-J6 200°/s
J1-J4 180°/s
J5-J6 200°/s
J1-J4 180°/s
J5-J6 200°/s
J1-J2 100°/s
J3-J4 150°/s
J5-J6 180°/s
J1-J2 100°/s
J3-J4 150°/s
J5-J6 180°/s
J1-J2:  80°/s
J3-J4:  150°/s
J5-J6:  180°/s
Tool Speed2m/s3m/s3m/s2m/s2.5m/s2m/s
Repeatability±0.02mm±0.03mm±0.03mm±0.05mm
Degree Of  Freedom6
END I/O PortDigital Input:3,Digital Output:3,Analog Input:2
Control Box I/O PortDigital Input:16, Digital Output:16, Analog Input:2, Analog Output:2
I/O Source24V 2A
CommunicationTCP/IP and MODBUS
ProgrammingGraphical Programming, Remote Call Interface
IP ClassificationIP54/IP66
Collaborative Operation10 Advanced Security Configuration Functions
Main MaterialAluminum Alloy
Working Temperature0-50℃
Power Input200-240V AC 50-60Hz
CableCable To Connect The Control Box: 5m, Cable To Connect Teach Pendant: 5m

First dual-joint module design in China.
The unique kinematic design enables the robot to have high flexibility. The highly integrated modular design minimizes the arm weight.
Optimized Singularity.
The unique arm design not only avoids the product homogeneity, but also reduces the singularity.
Highly Flexibility.
The collaborative robot with 4/6-axis coaxial structure has almost reached the flexibility of 7-DOF robots.
Modularity.
All-in-one module of fully self-developed reducer, motor, encoder, drive and software.

Industries:
Electronics, Automotive, Metal processing, Renewable energy, Education.
Applications:
Loading and unloading, Assembly, Picking and placing, Welding, Palletizing Dispensing, Inspecting.
